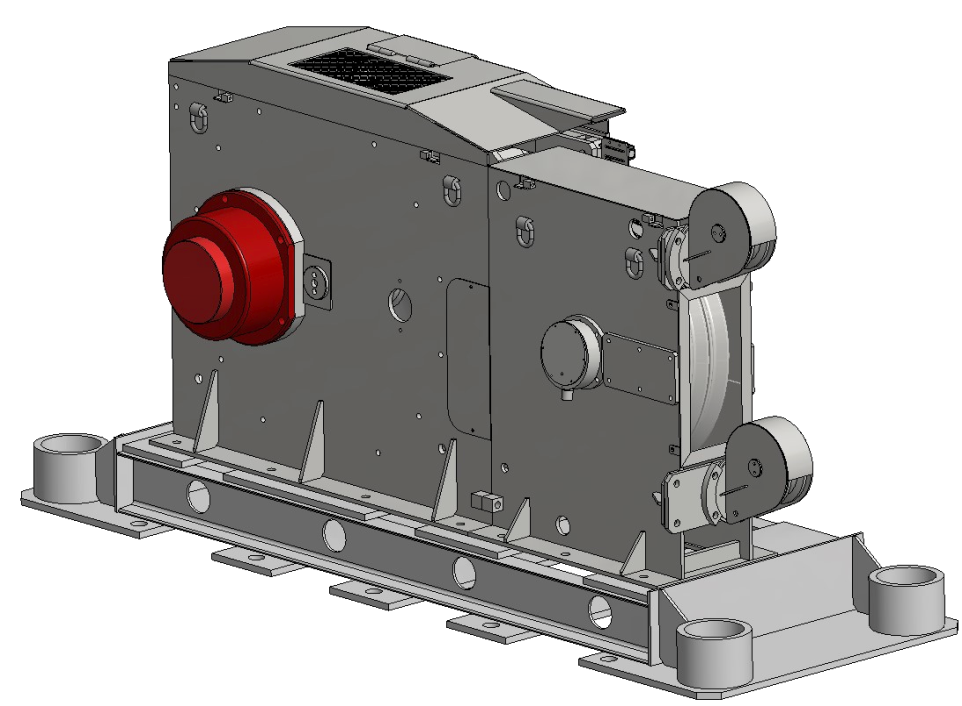

Suspended Railway VT.KLP-32 is designed for personnel transport on inclinations up to ± 25° and material transport on inclinations up to ± 30°. It can be operated in underground excavations of mining facilities, in methane and non-methane environment, including headings with “a”, “b” or “c” methane explosion hazard degree and class A and B coal dust explosion hazard
| Rail track profile | I 155; (1140 E) |
| Length of the driving route | max 3000 m |
| Rail lengths (standard) | 2 m; 2,4 m |
| Radius of curvature of the rails in the horizontal plane | min 4 m |
| Radius of curvature of the rails in the vertical plane | min 8 m |
| The angle of refraction of the rails at the joint in the vertical plane | max ±3° |
| The angle of refraction of the rails at the joint in the horizontal plane | max ±2° |
| Permissible slope of the driving route | max 45º |
| Driving speedy | 0-2 m/s |
| Load capacity of the rail joint in the direction of the suspension | min 40 kN |
| Carrying capacity the rail joint along the track | min 80 kN |
| Pulling force in the rope | max 32 kN |
| Rope diameter | 16 ÷ 18 mm |
| Carrying capacity of the carts | 40 kN |
| Hoists lifting capacity | 30 kN |
| Lifting capacity of the slings | min 50 kN |
| Total capacity of the transporting set | according to the load table |
| Supply voltage | 500/1000 V |
| Pulling force in the rope | max 32 kN |
| Driving speed | 0-2 m/s |
| Rope diameter | 16 mm |
| Chiller performance | max 362 dm3/min |
| Supply operating pressure | 14 MPa |
| Nominal pressure of the boost | 1,2÷1,4 MPa |
| Nominal pressure of steering and power steering, pump without dump | performance 4,5 MPa |
| Nominal pressure of steering and power steering, pump with dump | performance 3 MPa |
| Hydraulic system capacity | 140 dm3 |
| Hydraulic oil | Hydrol 40 or 50 |
| Supply voltage | 500/1000 V |
| Electric motor power | 75 kW |
| Electric motor revs | 1485 rev/min |
| Weight of the unit | 2515 kg |
| Aggregate weight | 850 kg |
| Control station weight | 120 kg |
